Customized Design Honeycomb Panels / ISO14001 Honeycomb Cladding Wall Panel
Aluminum Honeycomb Sandwich Panel
Product Information:

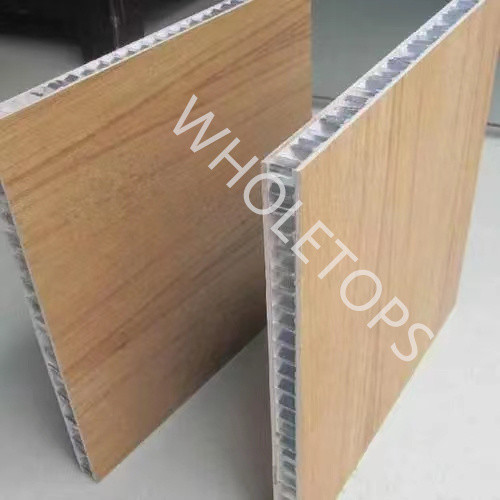

WHOLETOPS brand Aluminum Honeycomb Sandwich Panel is a sandwich panel consisting of two aluminum plates (generally 1100 and 3003) as face sheets and hexagonal aluminum honeycomb cells as the core material, bonded together by aviation-purpose epoxy adhesive film. This type of sandwich panel is the most widely used honeycomb panel, utilized in building facades, ceilings, decorations, furniture and more.
Fire-proofing: Grade A
Sound insulation: weight-counted sound insulation quantity 25dB
Thermal Insulation:Thermal conductivity 0.527W/m·K
Strong weather resistance:the material is self-cleaning. Using rolling coating technology with 70% flurocarbon.
Minimum radius of arc slab is 300mm, its one-time process forming no need second time process.ensure no damage to the panel strength.
Product Overview:
Material:Aluminum
Aluminum Alloy:1100/3003/5005
Thickness:8mm, 10mm , 12mm, 15mm, 18mm, 20mm 25mm
Surface Finished:PVDF Coated/Powder Coated
Coating Brand:PPG/Akzo Nobel
Warranty:10-20 years
Size:Customized
Color:Customized
Packing:Wooden Box
Warranty:10-20years
Class Fire Prevention:A2
MOQ:500㎡
| Product advantages |
| 1. light and straightness | 2. excellent rigidness |
| 3. high intensity | 4. wind pressure resistance |
| 5. fireproof, sound and thermal insulation, shock absorption | 6. even coating and various colors |
| 7. easy to maintain and environmental protection | |
Specification:
1. Total Thickness: 8mm, 10mm , 12mm, 15mm, 18mm, 20mm, 25mm and so on.
2. Top Panel: aluminum alloy sheet coated with fluro-carbon resin((PVDF) coating with 0.8 – 1.0 mm thickness.
3. Core: aluminum honeycomb core
4. Bottom Panel: aluminum sheet with PVDF coated / Power coated with 0.8—1.0mm thickness
5. Surface finish: PVDF coated / Power coated
6. Aluminum Alloy: 1100, 3003, 5005
7. size: width ≤ 1500mm, length ≤ 5800mm
Scopes of Application:
1. Building exterior walls decoration (especially for high-rise building)Curtain wall decoration, advertising aboard, signboards,ceiling etc.
2. Interior decoration, wall partitions, door, ceiling
3. Advertising board , signboards,insulation cars,
4. prototype of cabinet and so on
